Dry Disconnect Couplings

Home / Products / Dry Disconnect Couplings

Our company, working to prevent air pollution and protect people and the environment from harmful waste, has conducted R&D to produce safe, eco-friendly products for filtering aggressive liquids in chemical and petrochemical transport, and has started manufacturing Dry Disconnect Couplings — previously imported — using entirely domestic capabilities.

Following approximately five months of R&D, we developed and launched Dry Disconnect Couplings for truck tankers, rail tankers and tank containers transporting chemical substances, petroleum derivatives and LPG, to prevent liquid loss and protect the environment from chemical waste.

Dry Disconnect Couplings manufactured by User Makina comply with European standards and are certified according to ATEX and ADR regulations, and also hold the CE certificate under the European Pressure Equipment Directive (PED).

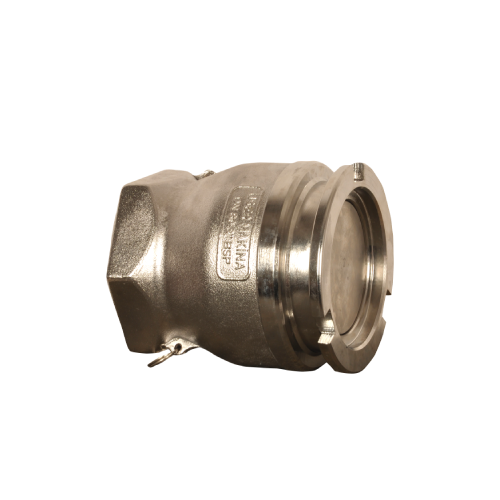

3'' Dry Disconnect Coupling

No Part Description Material Weight
1Tank unit 3'' BodyDIN/EN 1.4404 (X2CrNiMo 18 10) and 6082 almg3,235 kg
2Tank unit 3'' PlungerDIN/EN 1.4404 (X2CrNiMo 18 10) and 6082 almg0,445 kg
3Tank unit 3'' ContactFluorocarbon rubber (FKM)0,006 kg
4Tank unit 3'' Spring wireDIN/EN 1.4310 (X12 CrNi 17 7) AISI 301 S-CO0,035 kg
5Tank unit 3'' CenteringPTFE0,015 kg
6Tank unit 3'' Three-foot cen.DIN/EN 1.4404 (X2CrNiMo 18 10) and 6082 alm.0,055 kg
7Tank unit 3'' FeltPTFE0,015 kg

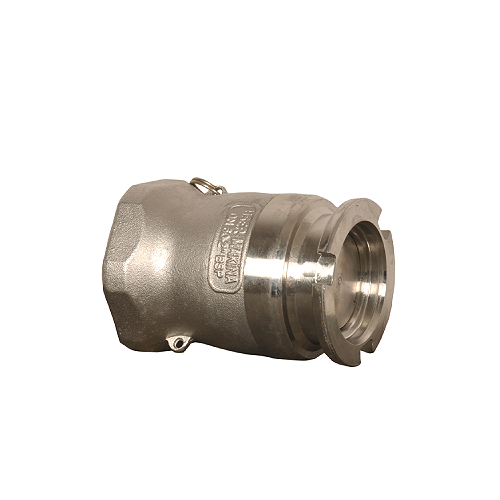

2'' Dry Disconnect Coupling

No Part Description Material Weight
1Tank unit 2'' BodyDIN/EN 1.4404 (X2CrNiMo 18 10) and 6082 almg1,190 kg
2Tank unit 2'' PlungerDIN/EN 1.4404 (X2CrNiMo 18 10) and 6082 almg0,130 kg
3Tank unit 2'' ContactFluorocarbon rubber (FKM)0,004 kg
4Tank unit 2'' Spring wireDIN/EN 1.4310 (X12 CrNi 17 7) AISI 301 S-CO0,015 kg
5Tank unit 2'' CenteringPTFE0,005 kg
6Tank unit 2'' Three-foot cen.DIN/EN 1.4404 (X2CrNiMo 18 10) and 6082 almg.0,020 kg
7Tank unit 2'' FeltPTFE0,005 kg
  • Size: 3'' (Ø119 mm) and 2'' (Ø71 mm)
  • Material: Stainless steel 316L or aluminum
  • Seal: Standard FPM (Viton) or NBR (Nitrile) — pure PTFE for seals and spring seat
  • Temperature Range: -20°C (-4°F) to +80°C (176°F)
  • Max Working Pressure: 25 bar / 363 psi
  • End Connections: BSP and NPT threaded or optional DIN-ASA flanged
